Current Projects

1150cc HRSR Imp Racer

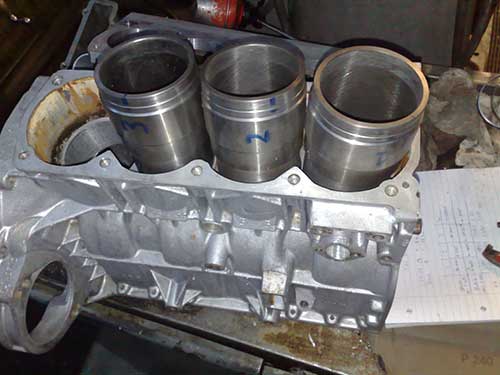

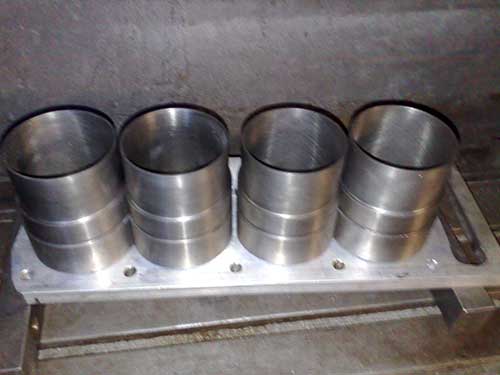

75mm liners prior to final assembly

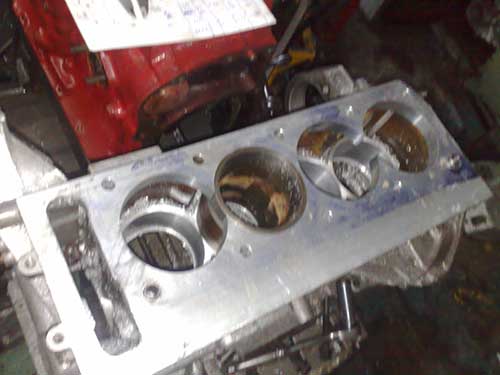

5/8" spacer plate adds rigidity and eliminates liner shuffle

Dummy liner, for checking concentricity

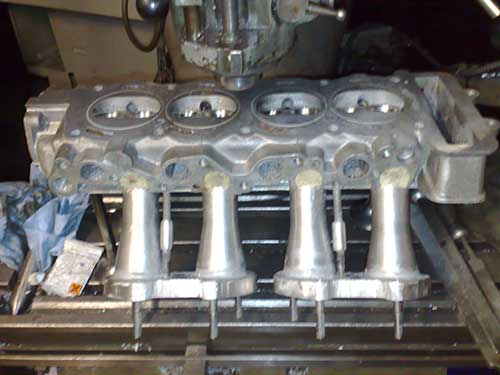

Down draft head

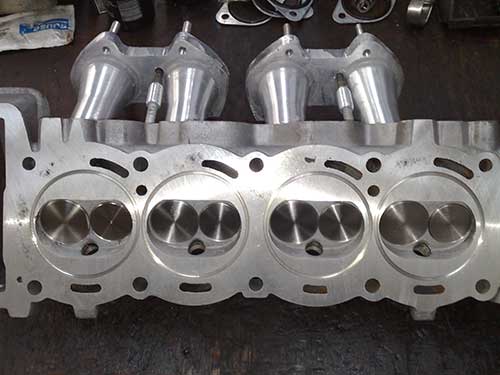

Head machined to take 1.38 inlet and 1.210 exhaust valves

Final operation was to skim the head at an angle to create a 'wedge head'

Wills ring groves also re-machined


Future Project Ideas

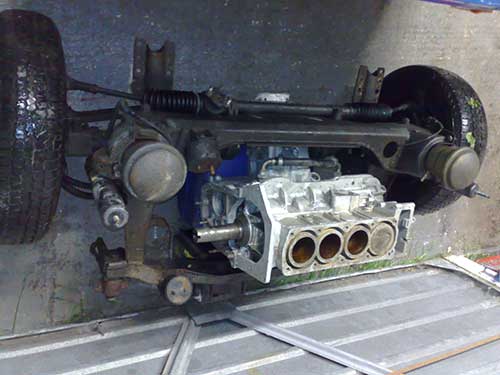

4wd Imp (Using Imp engine mated to Mini gear box)

Originally built by Ian Carter Imp engine mated to mini gearbox

Metro sub frame purchased, still a long way to go!

1200cc 5 bearing Imp engine

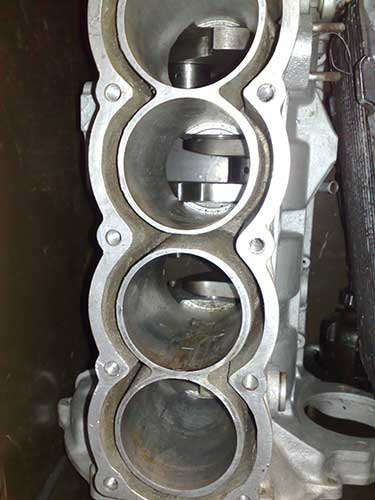

Prototype aluminium liners, this engine is believed to have come from Coventry’s Rootes test department

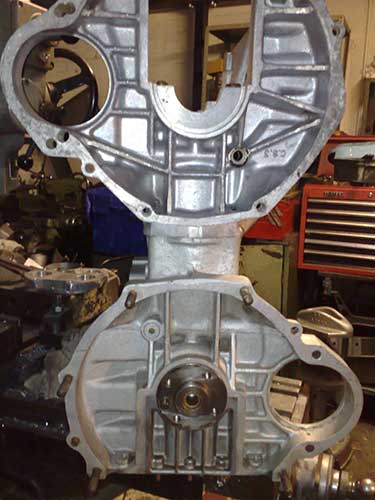

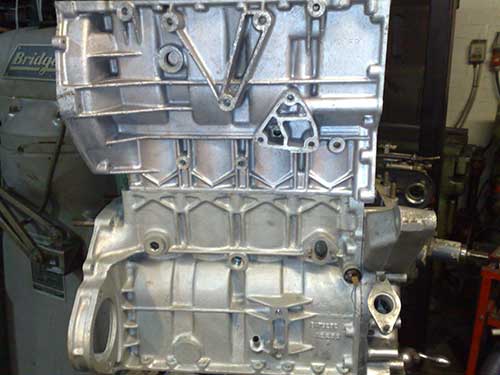

The extra height block allows 68mm stroke x 75mm bore, giving 1200cc

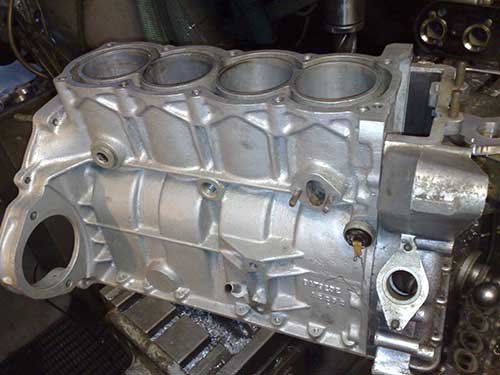

930cc B1 block has may more strengthening webs than early sand cast 1200cc units

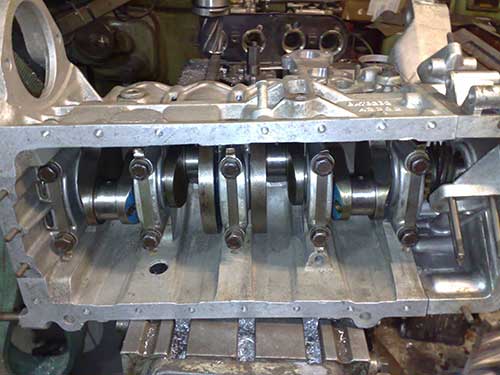

Steel 5 bearing crank

Constant verlocity joint to replace Imp rubber rotoflex
